Dispesning Cartiages

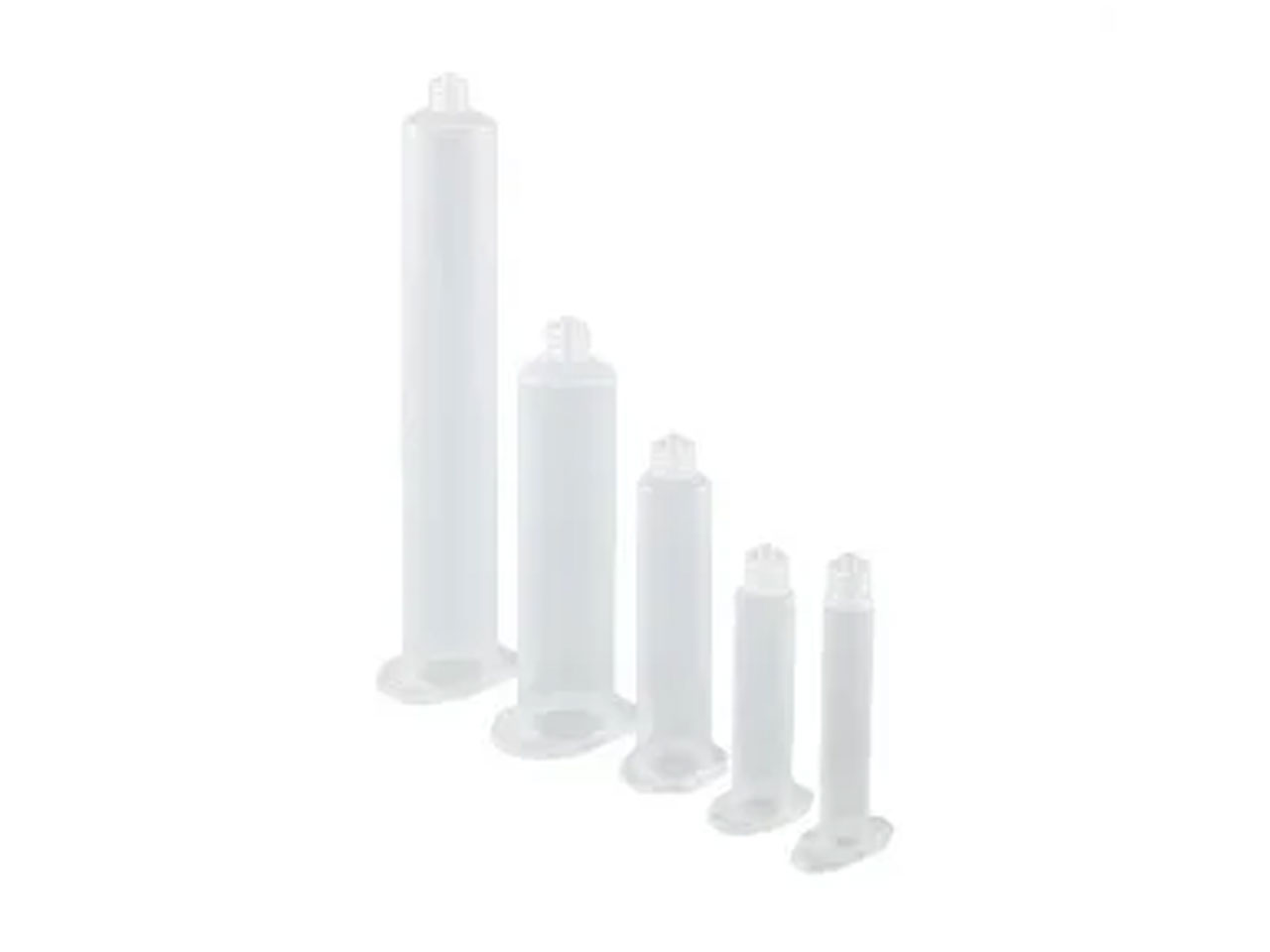

American Style Cartridge
| NO. | Capacity (CC) | ID (mm) | OD (mm) | Length (mm) | Color |
|---|---|---|---|---|---|
| ASC01 | 3 | 9.5 | 11.5 | 74.4 | Clear/Amber |
| ASC02 | 5 | 12.6 | 14.4 | 70 | Clear/Amber |
| ASC03 | 10 | 15.6 | 18.5 | 91 | Clear/Amber |
| ASC04 | 30 | 22.5 | 25.5 | 118.5 | Clear/Amber |
| ASC05 | 55 | 22.5 | 25.5 | 174.5 | Clear/Amber |
| ASC06 | 100 | 31 | 37 | 191.5 | Clear/Amber |
| ASC07 | 200 | 40 | 45.4 | 230 | Clear/Amber |
| ASC08 | 300 | 50 | 55 | 200 | Clear/Amber |

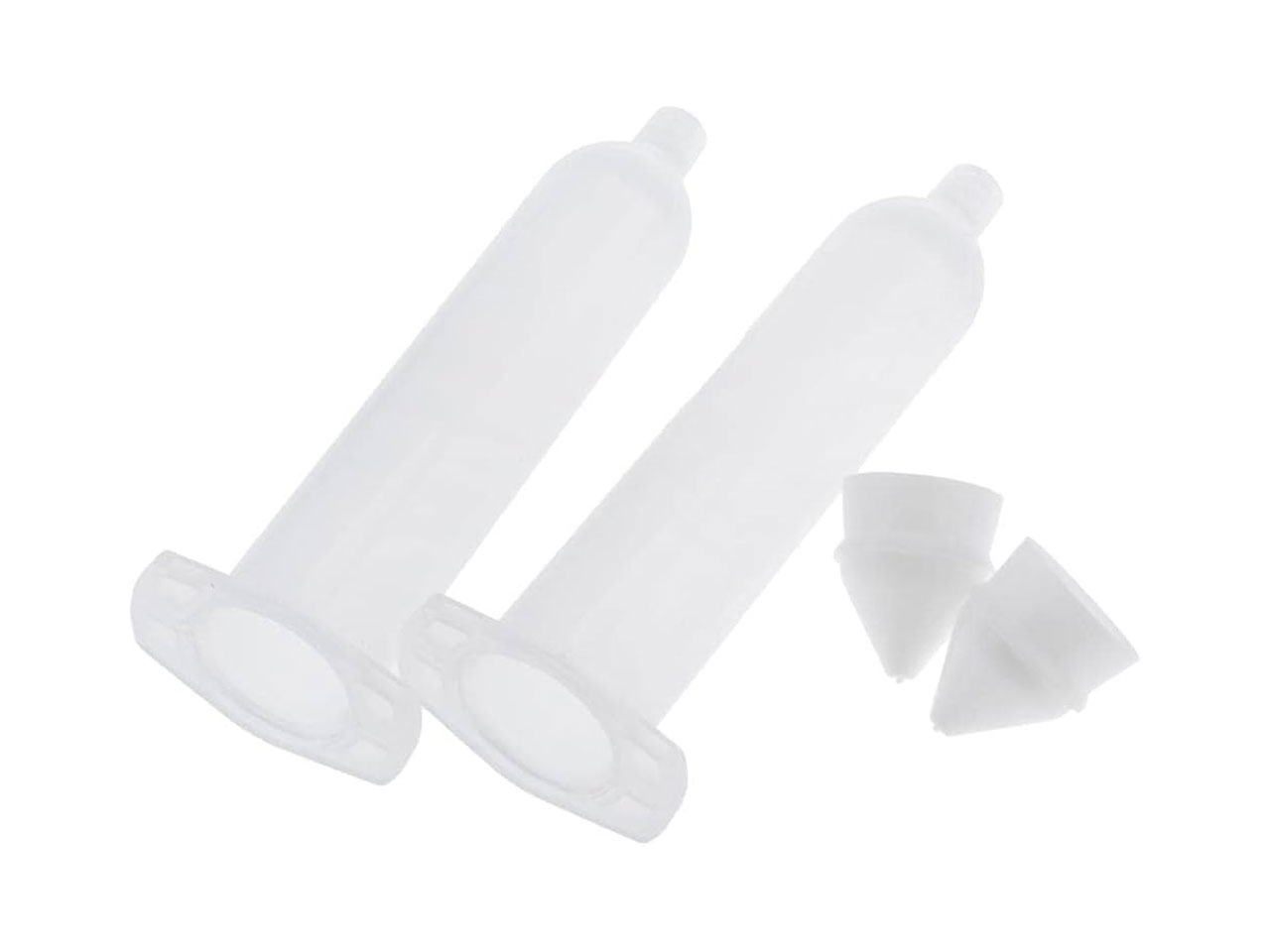

Japan Style Cartridge
| NO. | Capacity (CC) | ID (mm) | OD (mm) | Length (mm) | Color |
|---|---|---|---|---|---|
| JSC01 | 5 | 13 | 15.4 | 77 | Clear/Green/Black/Orange |
| JSC02 | 10 | 15.1 | 17.5 | 106 | Clear/Green/Black/Orange |
| JSC03 | 30 | 22.8 | 25.5 | 130 | Clear/Green/Black/Orange |
| JSC04 | 55 | 22.8 | 25.5 | 162 | Clear/Green/Black/Orange |
| JSC05 | 70 | 22.8 | 25.5 | 223 | Clear/Green/Black/Orange |

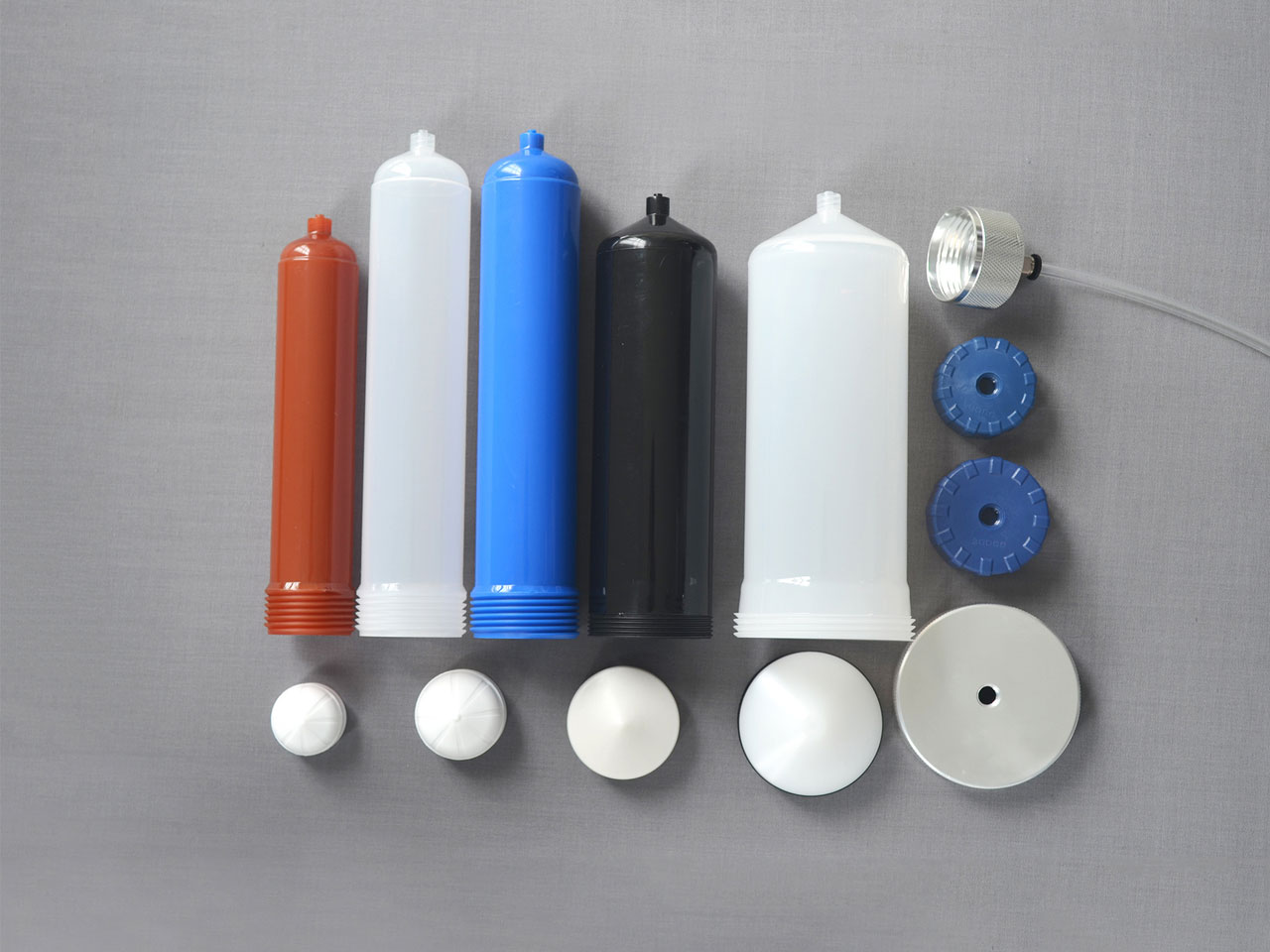

Large Capacity Cartridge
| Material No. | Capacity | ID (mm) | OD (mm) | Length (mm) | Taper Cartridge | Piston | Color |
|---|---|---|---|---|---|---|---|
| ASC06 | 100CC | 31 | 37 | 191.5 | PP | PE | Clear/ Amber /Black |
| ASC07 | 200CC | 40 | 45.4 | 230 | PP | PE | |
| ASC08 | 300CC | 50 | 55 | 200 | PP | Rubber | |
| ASC09 | 500CC | 64.4 | 71.65 | 201 | PP | PE | |
| ASC10 | 300CC | 45 | 48 | 218 | PP | PE | White |

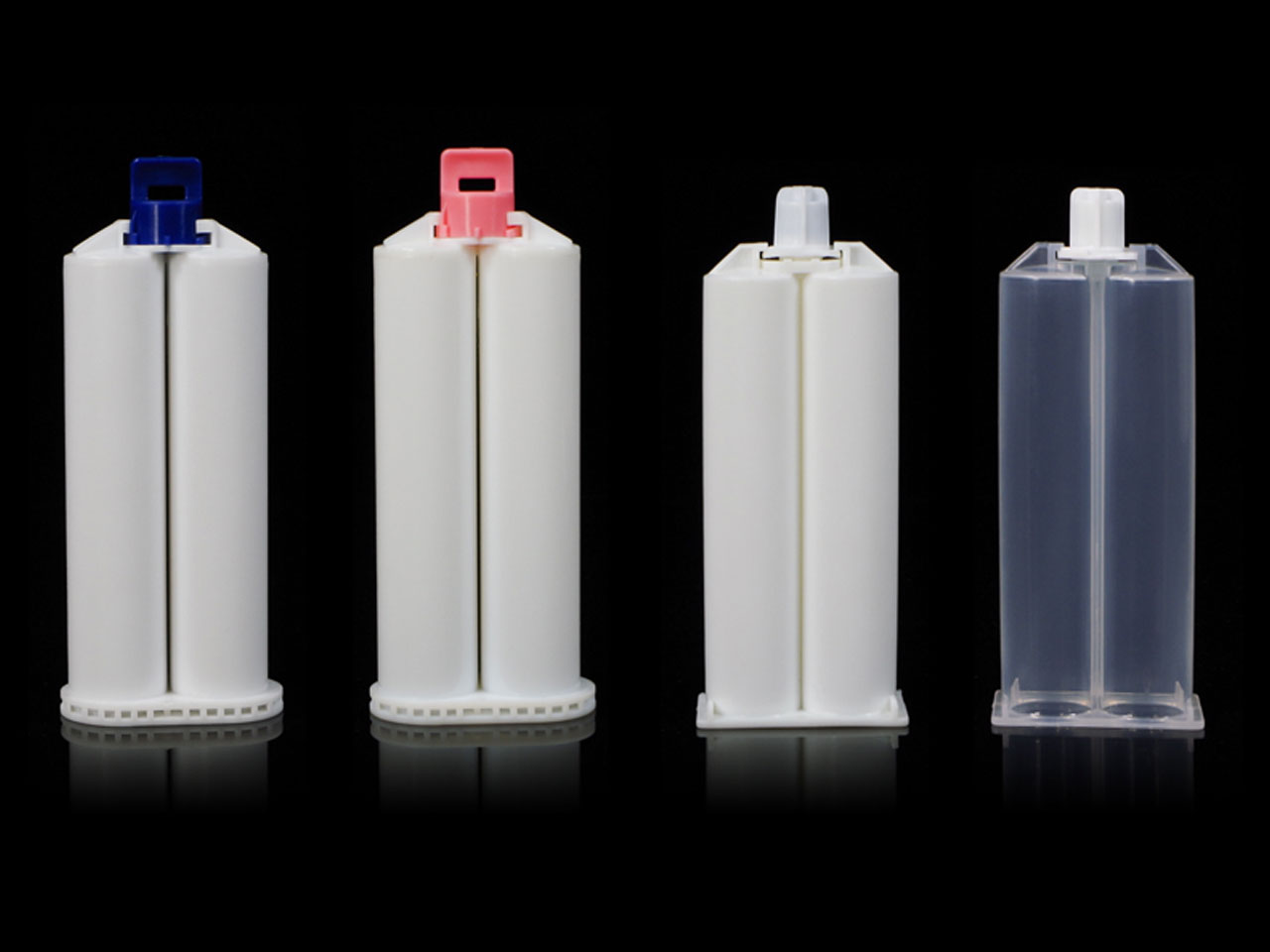

Two Component Barrel
| No. | Item No | High (mm) | Dia.A (mm) | Dia.B (mm) |
|---|---|---|---|---|
| ABNS1 | 5ml1:1 | 82.6 | 8.9 | 8.9 |
| ABNS2 | 24ml1:1 | 81.7 | 18.2 | 18.2 |
| ABNS3 | 590ml1:1 | 216 | 48 | 48 |
| ABNS4 | 600ml1:1 | 207 | 50 | 50 |
| ABNS5 | 450ml2:1 | 208 | 50 | 37 |
| ABNS6 | 900ml2:1 | 214 | 70 | 50 |
| ABNS7 | 385ml3:1 | 159.2 | 55.7 | 33.7 |
| ABNS8 | 390ml3:1 | 212 | 47.7 | 29 |
| ABNS9 | 360ml5:1 | 212 | 47.7 | 23 |
| ABNS10 | 250ml10:1 | 145.5 | 54.7 | 19.4 |
| ABNS11 | 345ml10:1 | 219 | 49.5 | 18.7 |
| ABNS12 | 380ml10:1 | 187.4 | 64 | 23.2 |
| ABNS13 | 490ml10:1 | 183 | 66 | 23 |
| ABNS14 | 1500ml1:1 | 218 | 77.6 | 77.6 |
| ABNS15 | 5ml4:1 | 82.6 | 11.05 | 6 |
| ABNS16 | 375ML4:1 | 255 | 50 | 27.6 |
| ABNS17 | 14ML1:1 | 81.7 | 13.5 | 13.5 |
| ABNS18 | 300ML2:1 |
